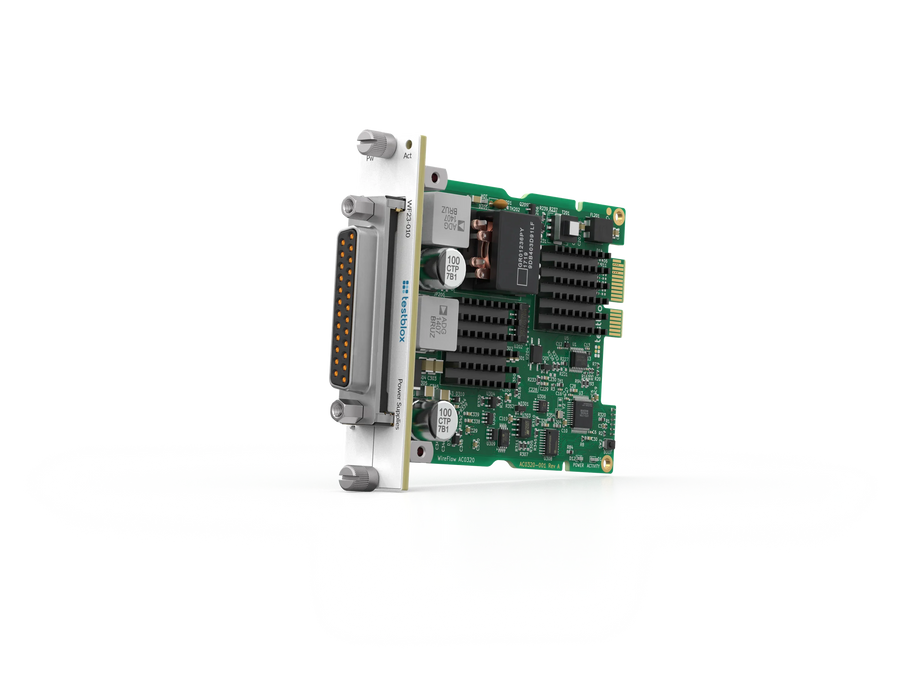

Programmable power
48 V · 2 A power supply
Analog output
±10 V · 8 channels

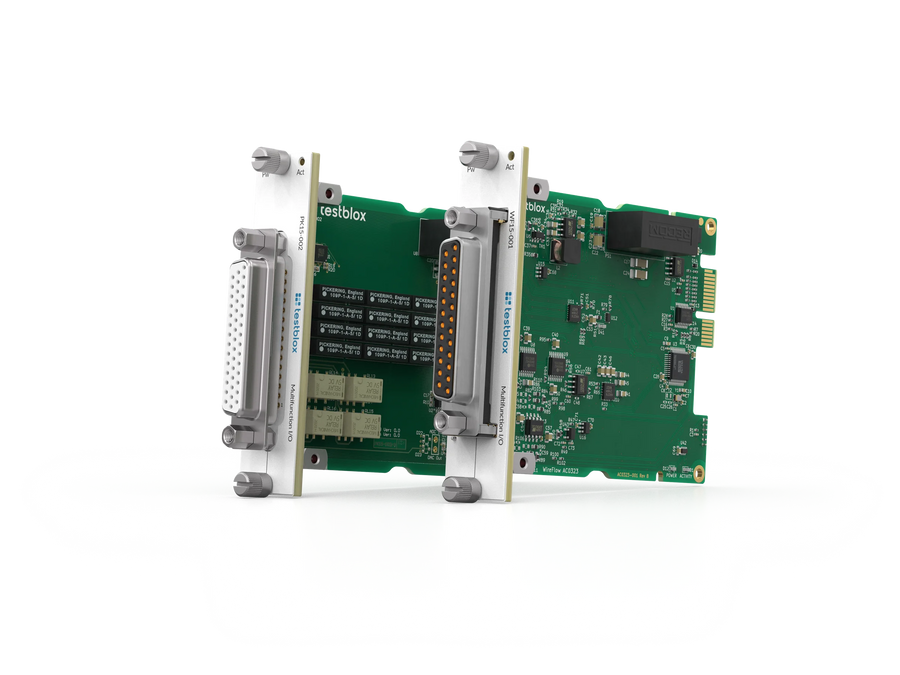

Multifunction I/O
Combine analog output with input and digital I/O
Functional Test. Right-sized.
The Fixture is the ATE
Playing-card-sized, modular instrumentation that puts measurement, switching, power, and communications inside your test fixture and close to the DUT.
Why Choose Testblox?
Built for functional test. Sized for your fixture.
Built for ATE
Purpose-built for automated test
Isolated modules eliminate ground loops
Python • LabVIEW • C#

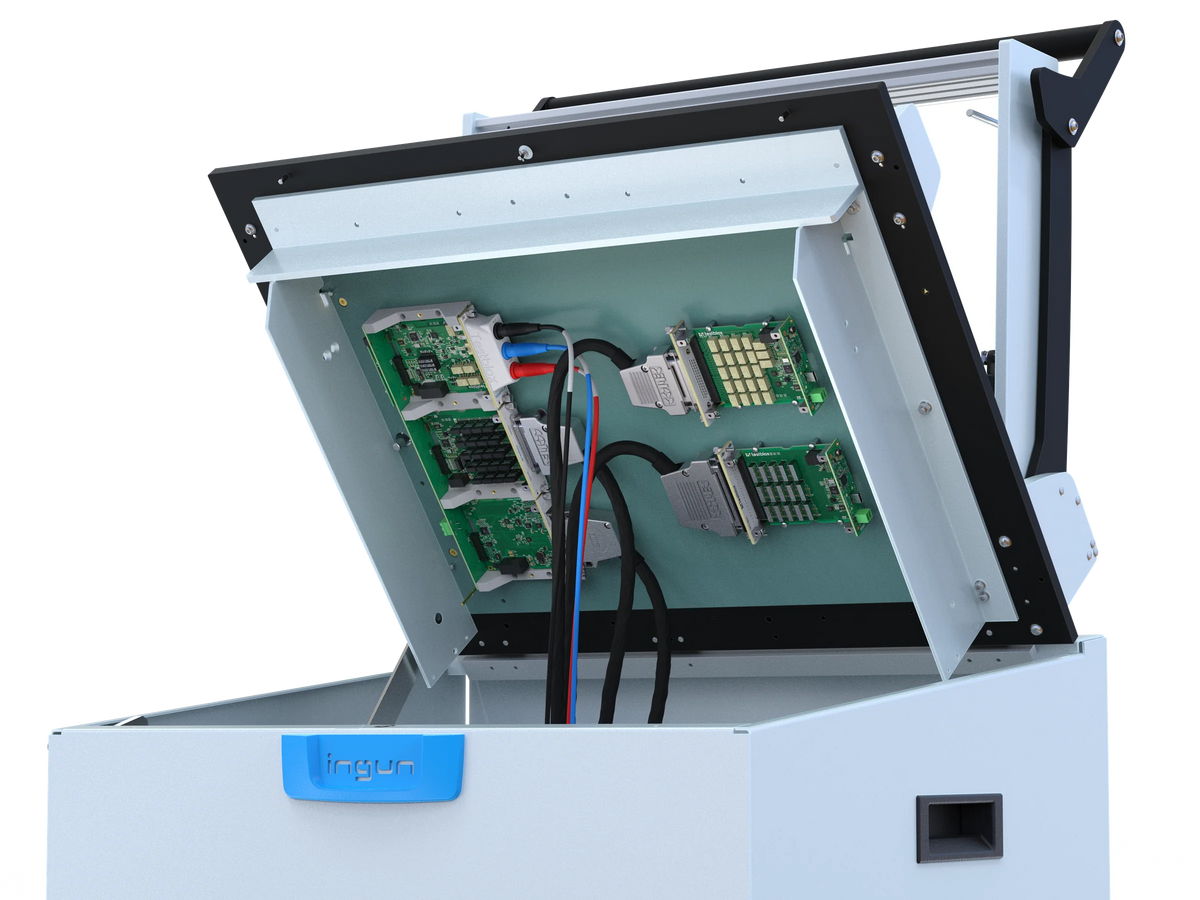

Fits where the test happens
Installs directly inside test fixtures
Less rack space and system complexity
Fast to integrate
Standard form factor and interfaces
Wide instrumentation and I/O catalog
Unified signal path and software workflow
Made to last
Designed and manufactured in Europe
3-year warranty
20+ years of hardware availability
Explore the Testblox platform
Backplanes, instrumentation modules and software working together inside your test fixture.

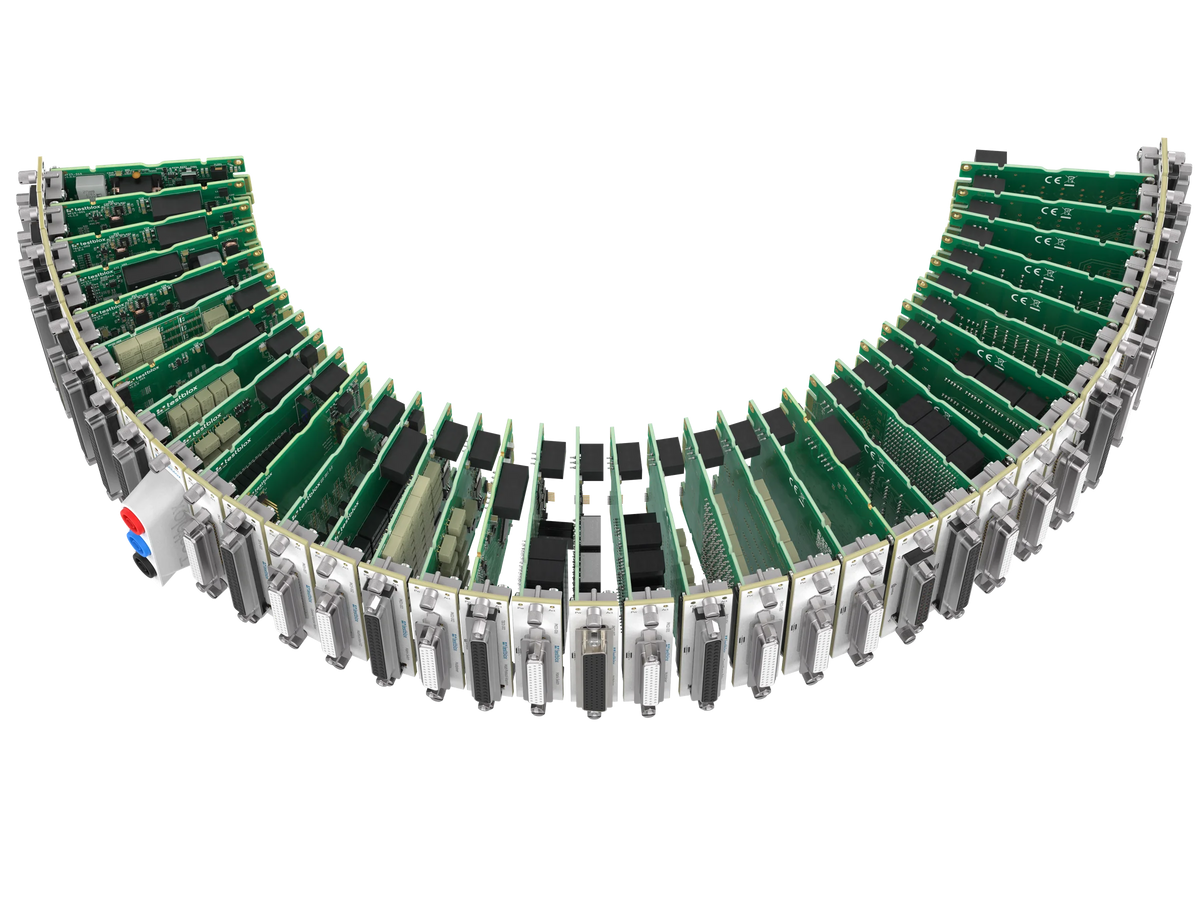

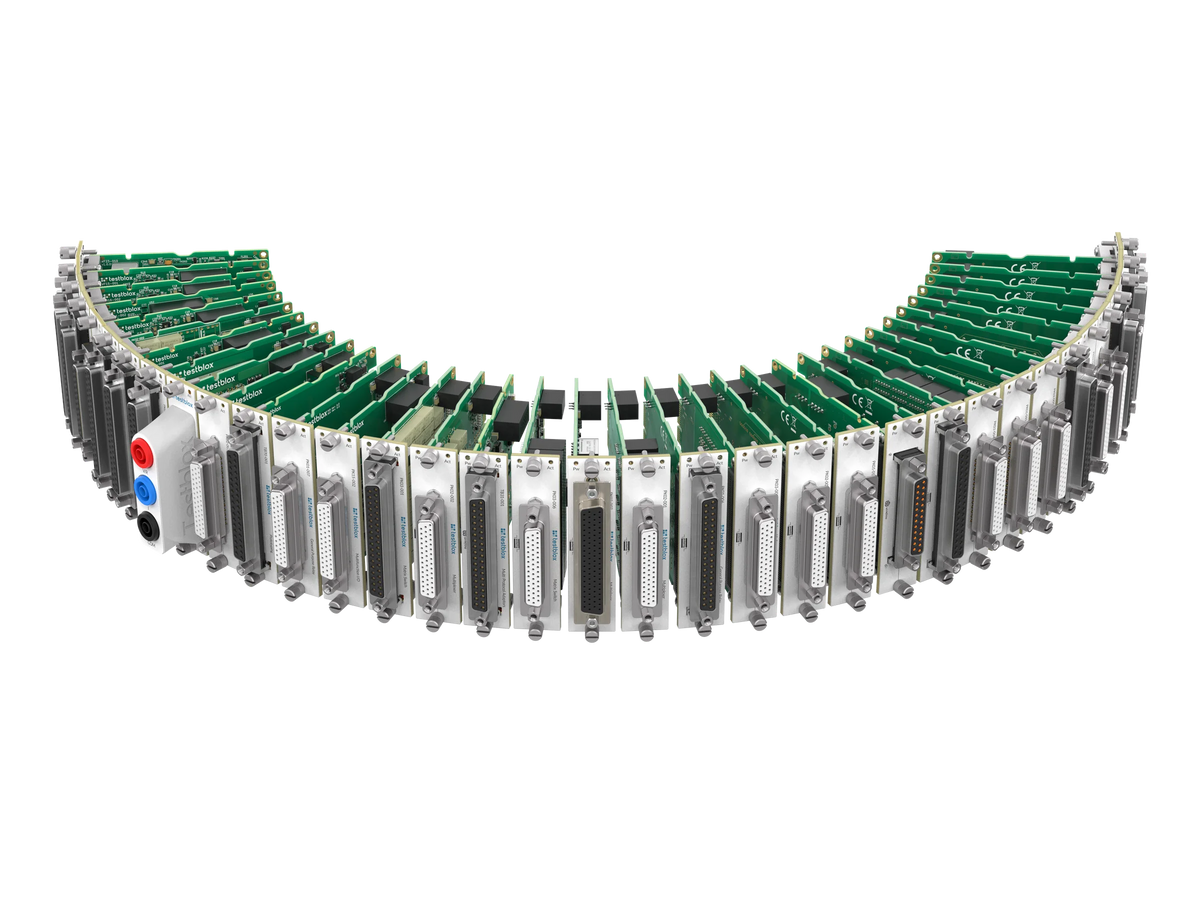

Modules
Combine measurement, switching, power, communication, signal generation, and I/O modules to match your functional test requirements.

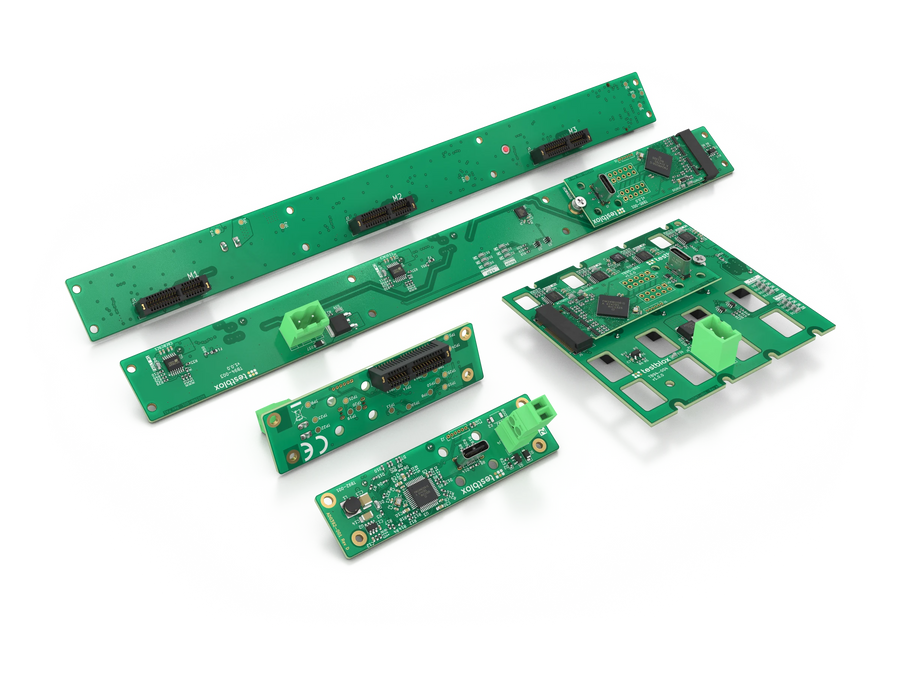

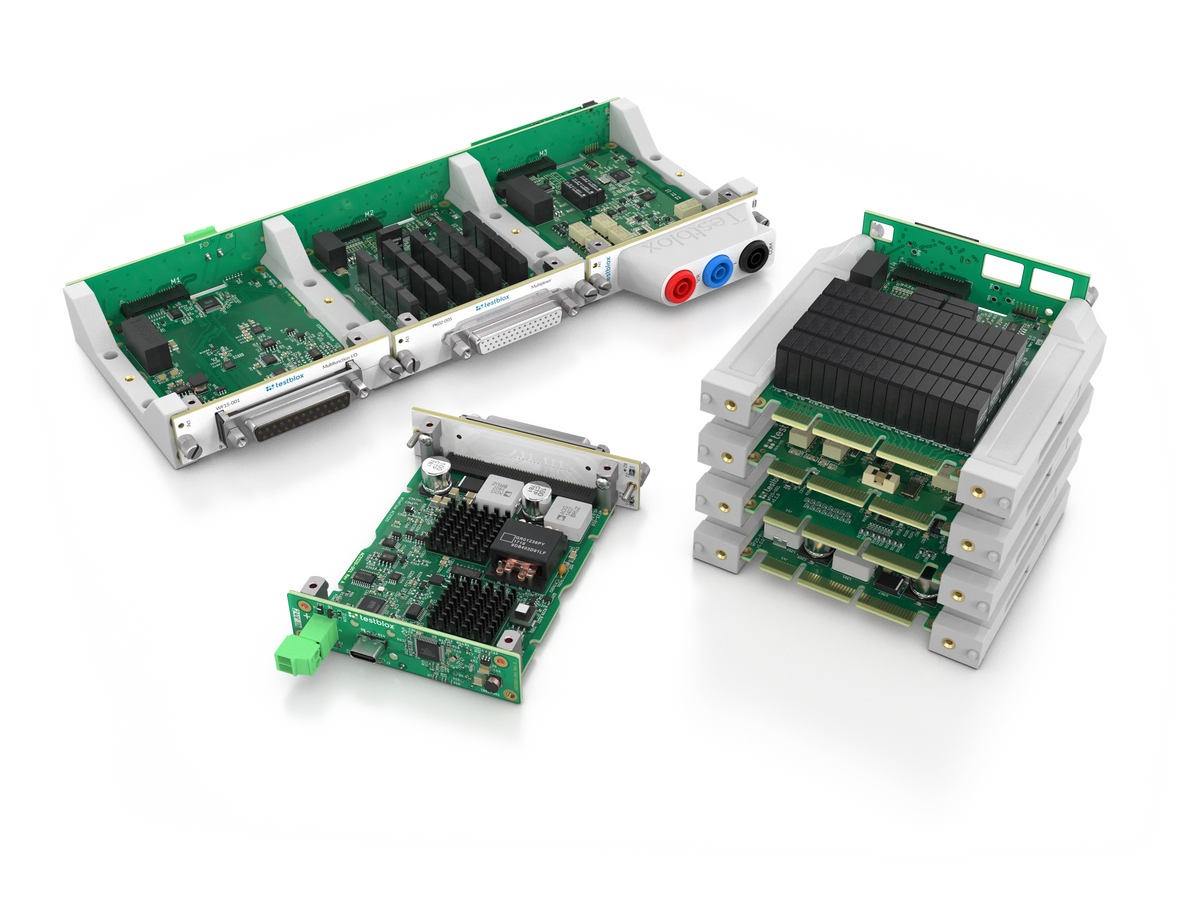

Backplanes
Create a clean mechanical and electrical foundation for in-fixture instrumentation, from one embedded measurement point to a compact test subsystem.
Brygga Software
Discover hardware, configure modules, test performance, monitor results, and move from first measurement to repeatable automation.
Find the right modules for your test
Explore the building blocks of your next test system.
Dozens of modules. Four core functions.
Build your test system with measurement, switching, sourcing and communications—all on one modular platform.

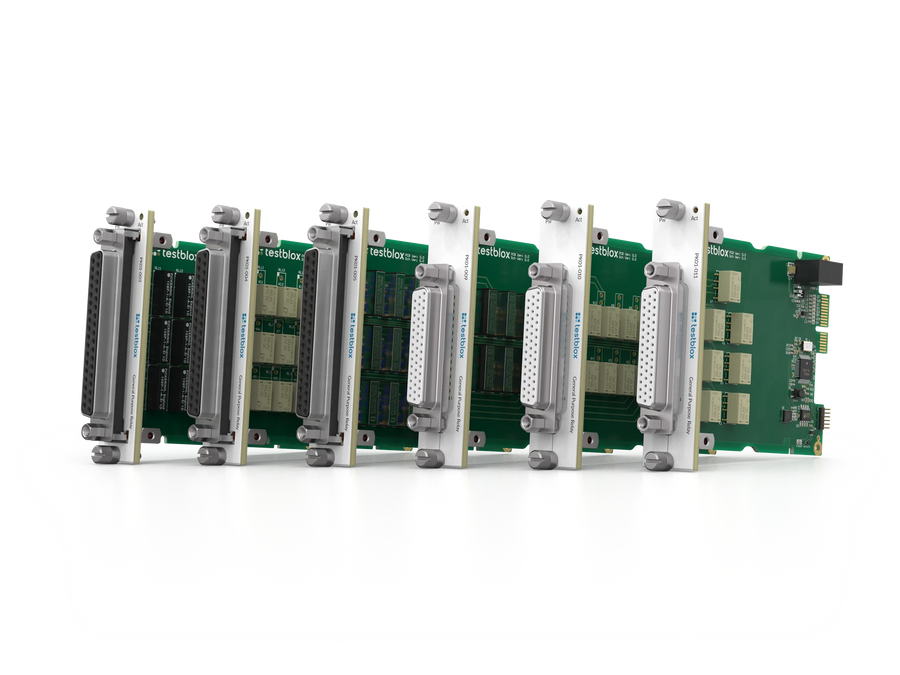

General-purpose relays
SPST, SPDT, DPST and DPDT options
Multiplexers
Select between multiple signal paths
Matrix switching
Connect instruments to different test points
Digital multimeters
4.5 digits · 60 V DC/AC

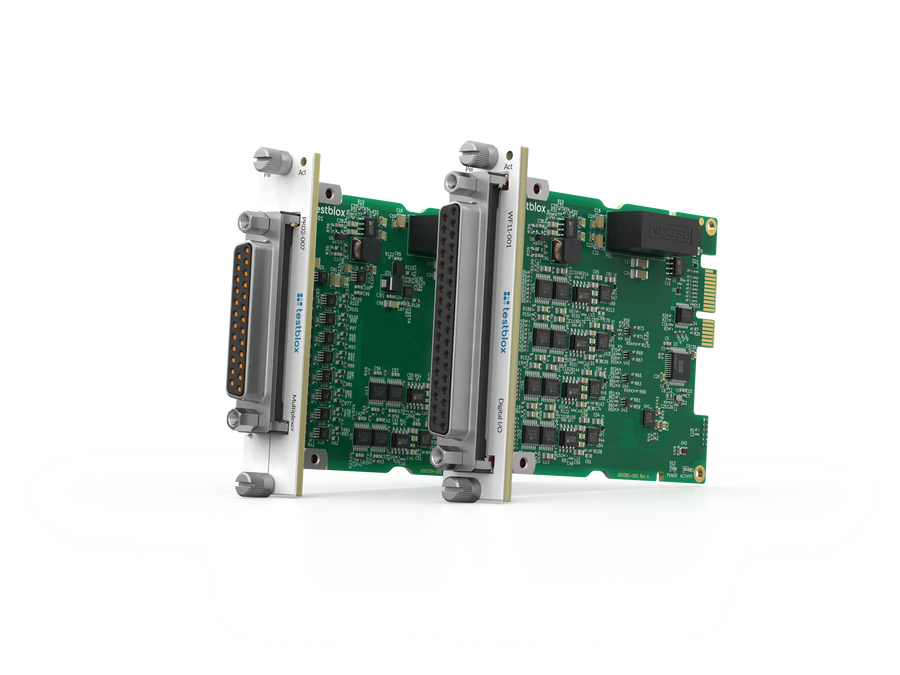

Analog input
16-bit · ±10 V or 60 V options
Multifunction I/O
Combine measurements with digital I/O and analog output

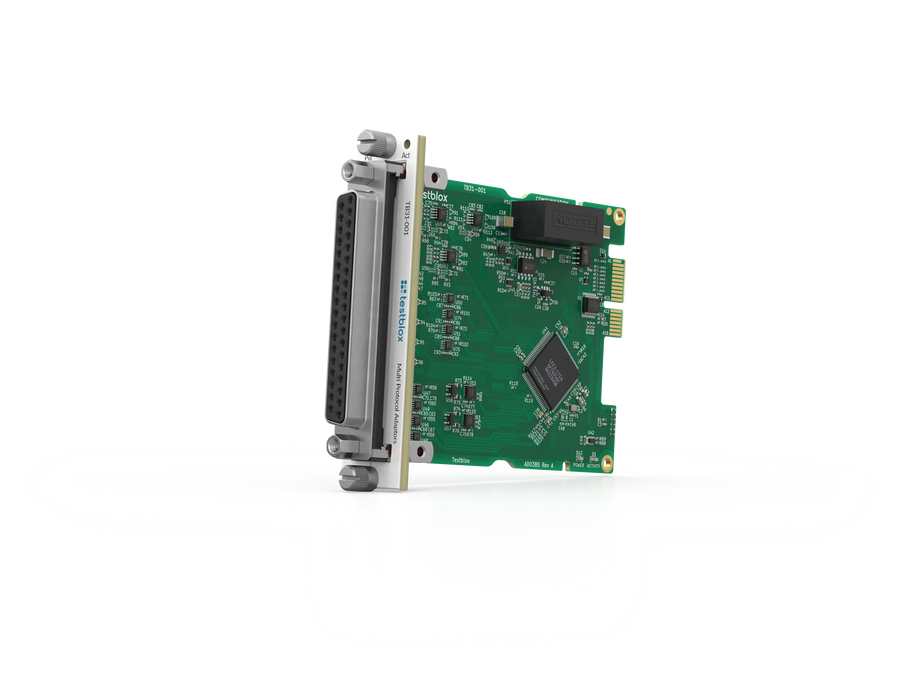

Serial protocols
SPI · I²C · UART · RS485
Digital I/O
24 channels · 5 V TTL or 24 V options
USB multiplexers
Route USB connections between the DUT and test equipment
Build your system
Explore modules for your application, or discuss your test requirements with us.
